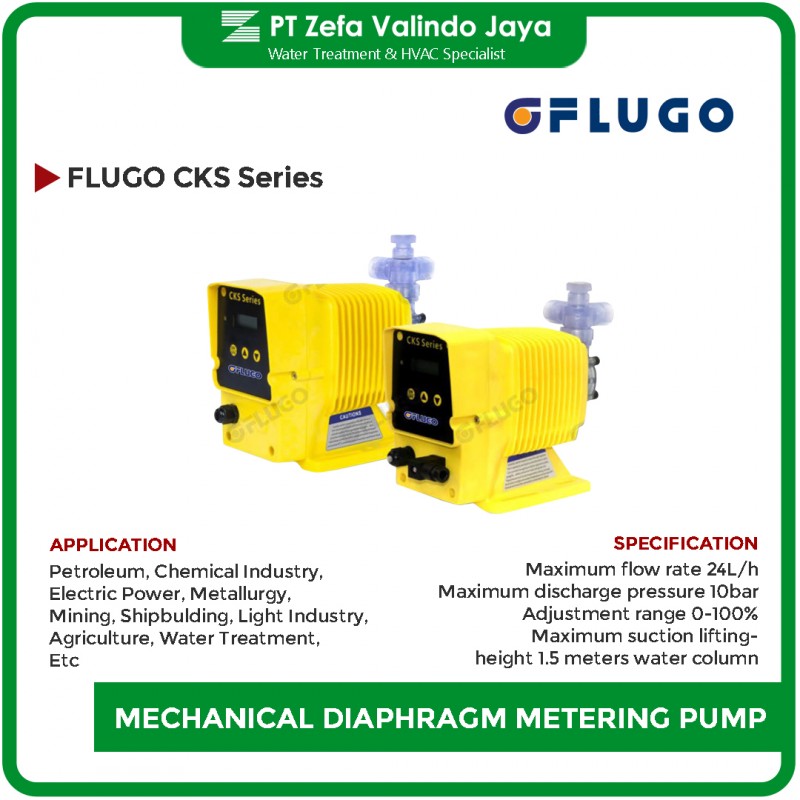

FLUGO CKS Series Mechanical Diaphragm Metering Pump

The Flugo CKS Series is an electromagnetic diaphragm metering pump designed to provide precise chemical injection for a wide range of water treatment and industrial process applications. With a maximum flow rate of 24 L/h, a maximum discharge pressure of 10 bar, and an adjustable flow range of 0–100%, this pump delivers accurate, stable, and flexible dosing control to meet various process requirements.

The CKS Series features a modular design that separates the hydraulic module, electromagnetic power module, and electronic control module, providing superior heat dissipation and enhanced operational reliability. It is equipped with a PTFE + EPDM composite diaphragm, offering excellent chemical resistance, weather resistance, and long service life while ensuring consistent dosing accuracy.

All models come standard with an LCD display for easy operation and monitoring. Operating at a high frequency of up to 360 strokes per minute, the pump provides stable performance with minimal vibration and extremely low pipeline pulsation. In addition, the CKS Series is available with various pump head materials to suit different fluid characteristics and application requirements.

The pump is widely used in Water Treatment Plants (WTP), Wastewater Treatment Plants (WWTP), petrochemical plants, chemical processing, power generation, metallurgy, mining, shipbuilding, manufacturing industries, and other chemical dosing applications that require high accuracy and reliable performance.

PRODUCT SPECIFICATIONS

• Maximum Flow Rate: 24 L/h
• Maximum Discharge Pressure: 10 bar
• Flow Adjustment Range: 0–100%
• Maximum Suction Lift: 1.5 m Water Column

DESIGN FEATURES

• Modular structure consisting of a hydraulic module, electromagnetic power module, and electronic control module.
• Isolated module design with excellent heat dissipation performance.
• Electromagnetic coil manufactured using a fully plastic-sealed, one-piece molding process for stable and reliable power output.
• Imported PTFE + EPDM composite diaphragm offering excellent weather resistance, flexibility, accurate metering performance, and extended pump service life.
• Compatible with a wide voltage range to meet the electrical standards of different countries.
• Standard LCD display across the entire series for convenient, stable, and precise control.
• High operating frequency of up to 360 strokes per minute, ensuring stable operation, extremely low pipeline pulsation, and minimal overall vibration.
• Equipped with an outlet air release valve for easier priming and more efficient operation.
• Available with various pump head materials, while the main body is constructed from high-quality engineering plastic, making it suitable for a wide range of industrial applications.

APPLICATIONS

Suitable for a wide range of industries, including:

• Petroleum & Oil and Gas
• Chemical Industry
• Power Generation
• Metallurgy
• Mining
• Shipbuilding
• Light Industry
• Agriculture
• Water Treatment
• Various industrial and environmental chemical dosing applications

AVAILABLE MODELS

Model 03

• Maximum Flow Rate: 38 mL/min (2.3 L/h)
• Maximum Pressure: 10 bar
• Stroke Speed: 360 strokes/min
• Connection Hose (PVC): 4 × 6 mm
• Motor: 220 V, Single Phase, 50 Hz, 20 W
• Pump Head: PVC
• Diaphragm: PTFE
• Ball Valve: Ceramic
• Valve Seat: FKM

Model 04

• Maximum Flow Rate: 65 mL/min (4.4 L/h)
• Maximum Pressure: 7 bar
• Stroke Speed: 360 strokes/min
• Connection Hose (PVC): 4 × 6 mm
• Motor: 220 V, Single Phase, 50 Hz, 20 W
• Pump Head: PVC
• Diaphragm: PTFE
• Ball Valve: Ceramic
• Valve Seat: FKM

Model 06

• Maximum Flow Rate: 100 mL/min (6 L/h)
• Maximum Pressure: 4 bar
• Stroke Speed: 360 strokes/min
• Connection Hose (PVC): 4 × 6 mm
• Motor: 220 V, Single Phase, 50 Hz, 20 W
• Pump Head: PVC
• Diaphragm: PTFE
• Ball Valve: Ceramic
• Valve Seat: FKM

Model 12

• Maximum Flow Rate: 230 mL/min (12.2 L/h)
• Maximum Pressure: 2 bar
• Stroke Speed: 360 strokes/min
• Connection Hose (PVC): 8 × 13 mm
• Motor: 220 V, Single Phase, 50 Hz, 20 W
• Pump Head: PVC
• Diaphragm: PTFE
• Ball Valve: Ceramic
• Valve Seat: FKM

Model 05

• Maximum Flow Rate: 83 mL/min (5 L/h)
• Maximum Pressure: 10 bar
• Stroke Speed: 360 strokes/min
• Connection Hose (PVC): 4 × 6 mm
• Motor: 220 V, Single Phase, 50 Hz, 24 W
• Pump Head: PVC
• Diaphragm: PTFE
• Ball Valve: Ceramic
• Valve Seat: FKM

Model 08

• Maximum Flow Rate: 133 mL/min (8 L/h)
• Maximum Pressure: 7 bar
• Stroke Speed: 360 strokes/min
• Connection Hose (PVC): 4 × 6 mm
• Motor: 220 V, Single Phase, 50 Hz, 24 W
• Pump Head: PVC
• Diaphragm: PTFE
• Ball Valve: Ceramic
• Valve Seat: FKM

Model 16

• Maximum Flow Rate: 267 mL/min (16 L/h)
• Maximum Pressure: 3.5 bar
• Stroke Speed: 360 strokes/min
• Connection Hose (PVC): 8 × 13 mm
• Motor: 220 V, Single Phase, 50 Hz, 24 W
• Pump Head: PVC
• Diaphragm: PTFE
• Ball Valve: Ceramic
• Valve Seat: FKM

Model 24

• Maximum Flow Rate: 400 mL/min (24 L/h)
• Maximum Pressure: 2 bar
• Stroke Speed: 360 strokes/min
• Connection Hose (PVC): 8 × 13 mm
• Motor: 220 V, Single Phase, 50 Hz, 24 W
• Pump Head: PVC
• Diaphragm: PTFE
• Ball Valve: Ceramic
• Valve Seat: FKM

Warranty: 1-Year Service Warranty (excluding spare parts replacement).
