Dosing Pump LMI Milton Roy PD Series

FILL OUT THE INQUIRY FORM HERE TO GET THE PRICE

Dosing Pump or Electronic Metering Pump is a special pump for injecting chemicals in a measurable and accurate and safe way for various applications.

LMI Milton Roy Chemical Dosing Pump is designed for more economical chemical injection which has a stroke length that can be set manually. LMI Milton Roy Chemical Injection Pump is designed in a closed manner to provide protection against moisture and corrosive conditions and has high quality construction and durability.

Benefits of Dosing Pump from LMI Milton Roy:

1. Diaphragm technology provides a lifetime of more than 20,000 hours
2. The diaphragm thoracic desaign improves the soundproof seal
3. Hydraulically protected diaphragm

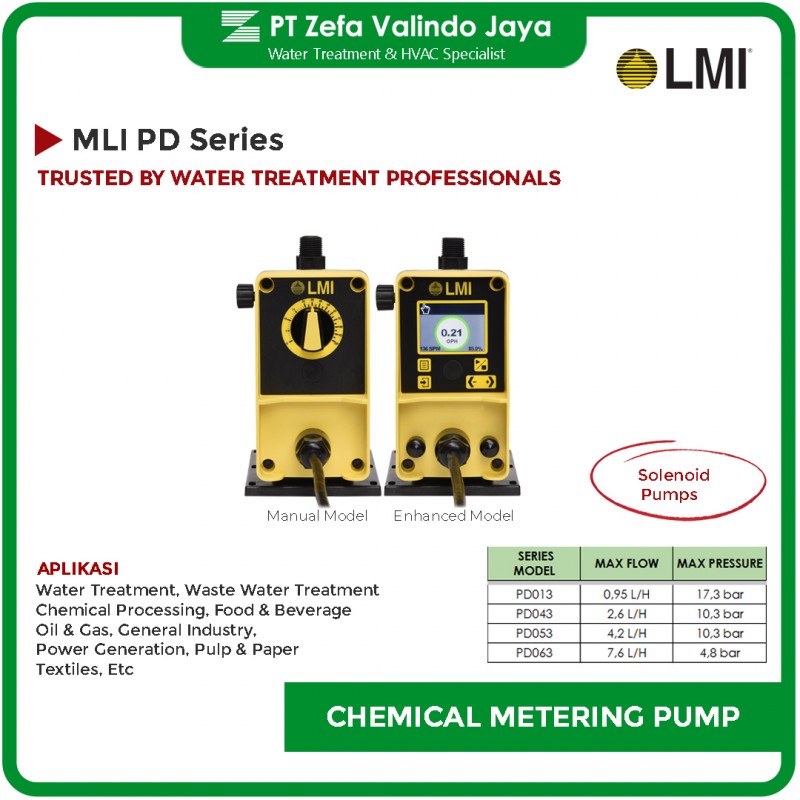

MILTON ROY PD SERIES MLI DOSING PUMP

Chemical Metering Pump (Solenoid Pumps)

1-Year Warranty (excluding spare parts replacement)

The PD Series chemical metering pump, the new standard in water treatment. Enhancements to this popular LMI pump series include an improved drive design, all-new electronics, and the proven FASTPRIME fluid end. Recommended for water treatment.

APPLICATIONS

Water Treatment, Waste Water Treatment, Chemical Processing, Food & Beverage, Oil & Gas, General Industry, Power Generation, Pulp & Paper, Textiles, etc.

PRODUCT SPECIFICATIONS

• Shared drive platform with universal 115-230V, 50/60 Hz power supply
• Flow from 2 GPH (7.57 LPH) to 450 PSI (30.6 BAR)
• Simplified capacity control with constant stroke length to maintain calibration throughout the adjustable range
• Advanced electronics with dynamic compensation for temperature and voltage conditions
• Advanced electronics with dynamic compensation for temperature and voltage conditions
• FastPrime liquid ends (standard) enable fast and easy priming with integrated bleed valves
• AutoPrime liquid ends (optional), specifically designed for liquids that emit gases
• Rugged construction with NEMA 4X/IP 65 housing for the harshest environments and outdoor use
• Compact size for efficient use of space in process applications or OEM configuration
• Agency Certifications – NSF 61 and 50 (pending), ETL, CE
• Built on decades of experience and warranty available
• Weight: 5 kg

ADDITIONAL FUNCTIONS (PD7)

• 2.4" Color LCD Display – Intuitive navigation makes it easy to set up and operate the pump, displaying status and warnings remotely to ensure safe operation.
• External Control Input – Automate processes with pulse pacing, 4-20 mA analog input, remote start/stop, and tank level indicator
• Calibration Assistance – Simply pull from the column and adjust the estimated value on the screen to the actual measured value
• System & User Totalizer – Like a vehicle odometer, this feature records the number of pump strokes, estimated volume, and power cycles
• StayPrime Degassing Technology – Automates the priming cycle after the pump has been inactive for a specified period to ensure the pump remains primed.

MODEL PD013-708NI

Max Flow: 0.95 L/H

Max Pressure : 17.3 bar

MODEL PD043-728NI

Max Flow: 2.6 L/H

Max Pressure: 10.3 bar

MODEL PD053-738NI

Max Flow: 4.2 L/H

Max Pressure: 10.3 bar

MODEL PD063-748NI

Max Flow: 7.6 L/H

Max Pressure: 4.8 bar

Contact us for a catalog or further inquiries
